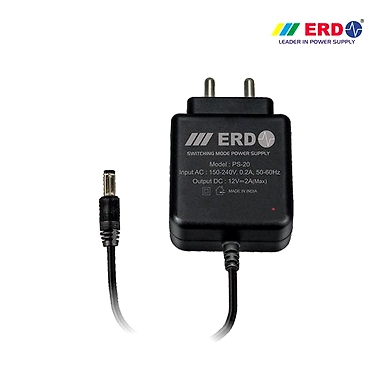

Plug In Type 12V-2Amp CCTV Power Supply

BrandERD

• Product is not available

• Price upon request
• Quantity

  -

  +

  Send Enquiry

• Specifications:

  • Input Voltage: 150V to 285V AC, 50/60Hz
  • Output Voltage: 12V DC
  • Output Current: 2 Amp (Max.)
  • Output Wattage: 24 Watt (Max.)


  Features:


  • BIS Approved
  • Highly Integrated SMPS Switcher I.C Design
  • Surge Protection, Over Temperature Protection
  • Over Current, Over Voltage & Over Load Protection
  • High-efficiency, low energy Consumption
  • Low Ripple Voltage (mV P-P): <5%
  • Works under low voltages and protects high voltage where linear fails
  • Small size Plug In Type.
  • Output DC Plug size 5.5x2.1mm (Grip Tag DC Pin)


  Applications:


  • CCTV Camera/ DVR.
  • WLL/ SET-TOP Box.
  • LED Products (LED Strip light, etc).
  • Other Electronic Equipments


  Warranty:


  • 6 Months warranty.
  • Physical damage/scratches/water or Liquid damage will not covered under warranty.
  • Replacement against manufacturing defects only.




  Additional Information:

  • Item Code: PS20
  • Minimum Order Quantity: 60 Piece
